方孔軸承型號
|

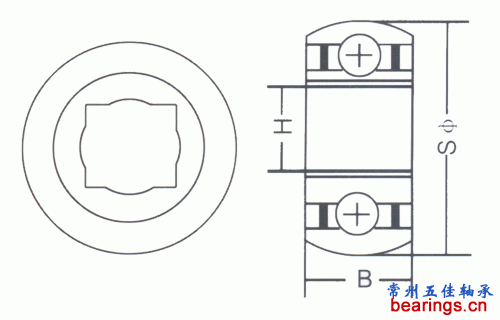

型號 |
基本尺寸 |
重量 |
||
|
|
H |
SΦ |
B |
|
|
39602/F29 |
29.3 |
85 |
30 |
0.75 |
|
39602/F33 |
33.3 |
100 |
33.3 |
1.12 |
|
型號 |
基本尺寸 |
重量 |
||||
|
|
H |
D |
SΦ |
B |
C |
|
|
W208PP5 |
29.97 |
80.00 |
|
36.53 |
18.00 |
0.59 |
|
W208PP6 |
26.13 |
80.00 |
|
36.53 |
18.00 |
0.66 |
|
W208PP8 |
29.97 |
80.00 |
|
36.53 |
30.18 |
0.70 |
|
W208PP9 |
26.13 |
80.00 |
|
36.53 |
30.18 |
0.76 |
|
W208PPB11 |
22.97 |
85.738 |
87.30 |
36.53 |
30.18 |
0.98 |
|
W208PPB12 |
22.97 |
85.738 |
87.30 |
36.53 |
30.18 |
0.93 |
|
W209PP5 |
32.77 |
85.00 |
|
36.53 |
30.18 |
0.80 |
|
W210PP4 |
29.97 |
90.00 |
|
30.18 |
30.18 |
0.92 |
|
W211PP3 |
38.87 |
100.00 |
|
33.34 |
33.34 |
1.15 |
|
W211PP5 |
38.87 |
101.60 |
|
44.45 |
36.53 |
1.641 |
|
W211PPB6 |
38.87 |
103.56 |
104.90 |
44.45 |
36.53 |
1.52 |
|
GW211PP17 |
38.87 |
100.00 |
|
44.45 |
33.34 |
1.34 |
|
ST627RBT1211-203 |
55.562 |
100.00 |
100.50 |
55.562 |
33.34 |
1.08 |
|
W208PPB5 |
29.97 |
|
80.00 |
36.53 |
18.00 |
0.59 |
|
GW208PPB5 |
29.97 |
|
80.00 |
36.53 |
24.00 |
0.63 |
|
W208PPB6 |
26.13 |
|
80.00 |
36.53 |
18.00 |
0.66 |
|
GW208PPB6 |
26.13 |
|
80.00 |
36.53 |
24.00 |
0.70 |
|
GW208PPB8 |
29.97 |
|
80.00 |
36.53 |
30.18 |
0.66 |
|
W208PPB9 |
26.13 |
|
80.00 |
36.53 |
30.18 |
0.73 |
|
W208PPB13 |
22.97 |
|
80.00 |
36.53 |
18.00 |
0.78 |
|
GW208PPB17 |
29.97 |
|
85.738 |
36.53 |
30.18 |
0.89 |
|
GW209PPB5 |
32.77 |
|
85.00 |
36.53 |
30.18 |
0.71 |
|
GW209PPB8 |
32.77 |
|
85.00 |
36.53 |
22.00 |
0.67 |
|
GW210PPB4 |
29.97 |
|
90.00 |
30.18 |
30.18 |
0.86 |
|
W210PPB6 |
29.97 |
|
90.00 |
36.53 |
30.18 |
0.93 |
|
W211PPB3 |
38.89 |
|
100.00 |
33.34 |
33.34 |
1.04 |
|
GW211PPB17 |
38.89 |
|
100.00 |
44.45 |
33.34 |
1.28 |
|
PDNF240/8Y |
26.13 |
|
80.00 |
36.53 |
30.18 |
0.73 |
|
PDNF245/9AY |
30.85 |
|
85.00 |
36.51 |
30.16 |
0.95 |
|
PDNF155/12AY |
41.10 |
|
100.00 |
33.34 |
33.34 |
0.98 |
|
型號 |
基本尺寸 |
重量 |
||||
|
|
A |
D |
B |
C |
S |
|
|
205KRR2 |
22.22 |
52 |
25.4 |
15.00 |
|
0.21 |
|
206KRR6 |
25.43 |
62.00 |
24.00 |
16.00 |
|
0.27 |
|
207KRR9 |
28.60 |
72.00 |
37.70 |
17.00 |
|
0.48 |
|
209KRR2 |
38.125 |
85.00 |
30.00 |
19.00 |
|
0.61 |
|
SB207-18HEX |
28.6 |
72 |
32 |
17 |
|
0.43 |
|
205KRRB2 |
22.25 |
|
25.40 |
15.00 |
52.00 |
0.18 |
|
SA2057/8HEXNC |
22.28 |
21.50 |
15.00 |
52.00 |
0.15 |
|
|
206KRRB6 |
25.43 |
24.00 |
18.00 |
62.00 |
0.27 |
|
|
207KRRB9 |
28.60 |
37.70 |
17.00 |
72.00 |
0.46 |
|
|
W208PPB16 |
31.77 |
36.53 |
18.00 |
80.00 |
0.65 |
|
|
209KRRB22 |
38.125 |
30.00 |
19.00 |
85.00 |
0.61 |
|
|
205NPPBAH02 |
22.22 |
25.4 |
15 |
52 |
0.16 |
|
|
F110968 |
25.55 |
36.5 |
18 |
62 |
0.32 |
|
|
軸承型號 |
基本尺寸 |
數量 |
|||
|
|
d |
D |
B |
C |
|
|
205GP |
16.00 |
53.00 |
19.50 |
18.20 |
0.22 |
|
205RVA |
19.05 |
52.00 |
21.00 |
15.00 |
0.19 |
|
205KR3 |
19.05 |
52.00 |
16.26 |
17.75 |
0.17 |
|
205PP9 |
19.50 |
52.00 |
34.92 |
15.00 |
0.22 |
|
206KRR18 |
32.00 |
62.00 |
24.00 |
16.00 |
0.21 |
|
W208PP4 |
130.175 |
80.00 |
30.18 |
30.18 |
0.72 |
|
W208PP10 |
38.113 |
80.00 |
42.86 |
21.00 |
0.63 |
|
GW210PP3 |
35.73 |
90.00 |
30.18 |
30.18 |
0.75 |
|
W210PP8 |
38.86 |
90.00 |
30.18 |
30.18 |
0.79 |
|
W210PP2 |
49.23 |
90.00 |
30.18 |
30.18 |
0.80 |
|
GW210PP2 |
19.23 |
90.00 |
30.18 |
30.18 |
0.77 |
|
GW211PP2 |
55.58 |
100.00 |
33.34 |
33.34 |
1.08 |
|
WIR212-39 |
61.942 |
110.00 |
61.912 |
22.00 |
1.31 |
|
GW214PP2 |
70.00 |
125.00 |
39.69 |
39.69 |
1.55 |
|
PDF11003 |
55.00 |
100.00 |
56.00 |
33.34 |
1.15 |
|
軸承型號 |
基本尺寸 |
數量 |
|||
|
|
d |
S |
B |
C |
(kg) |
|
205PPB7 |
23.813 |
52 |
34.92 |
15.00 |
0.2 |
|
RAE25-00NPPB |
25 |
52 |
15 |
15 |
0.19 |
|
W208PPB4 |
30.175 |
80 |
30.18 |
30.18 |
0.72 |
|
W208PPB7 |
30.175 |
80 |
30.18 |
18.00 |
0.52 |
|
W208PPB2 |
38.113 |
80 |
42.86 |
18.00 |
0.63 |
|
W208PPB10 |
38.113 |
80 |
42.86 |
21.00 |
0.68 |
|
2AC08-11/2D1 |
38.113 |
80 |
42.86 |
30.18 |
0.65 |
|
6208-2RSNPPB |
40.00 |
80 |
18.00 |
18.00 |
0.34 |
|
W209PPB4 |
39.00 |
85 |
30.18 |
30.18 |
0.64 |
|
W209PPB2 |
45.00 |
85 |
30.18 |
30.18 |
0.58 |
|
W209PPB11 |
45.24 |
85 |
36.53 |
22.00 |
0.58 |
|
GW210PPB5 |
45.34 |
90 |
30.18 |
30.18 |
0.83 |
|
GW210PPB2/3ACI15/16D1 |
49.23 |
90 |
30.18 |
30.18 |
0.75 |
|
W210PPB9 |
49.40 |
90 |
36.53 |
23.00 |
0.83 |
|
GW211PPB13 |
45.34 |
100 |
33.34 |
25.00 |
0.98 |
|
GW211PPB9 |
55.75 |
100 |
39.69 |
25.00 |
0.72 |
|
W211PPB2/PDNF155-2 |
55.58 |
110 |
33.34 |
33.34 |
0.81 |
|
GW214PPB2 |
70.00 |
125 |
39.69 |
39.69 |
1.52 |
|
GW214PPB3 |
49.228 |
125 |
39.69 |
39.39 |
1.84 |
